Fat Shark HDO2

$499.00

Product Description

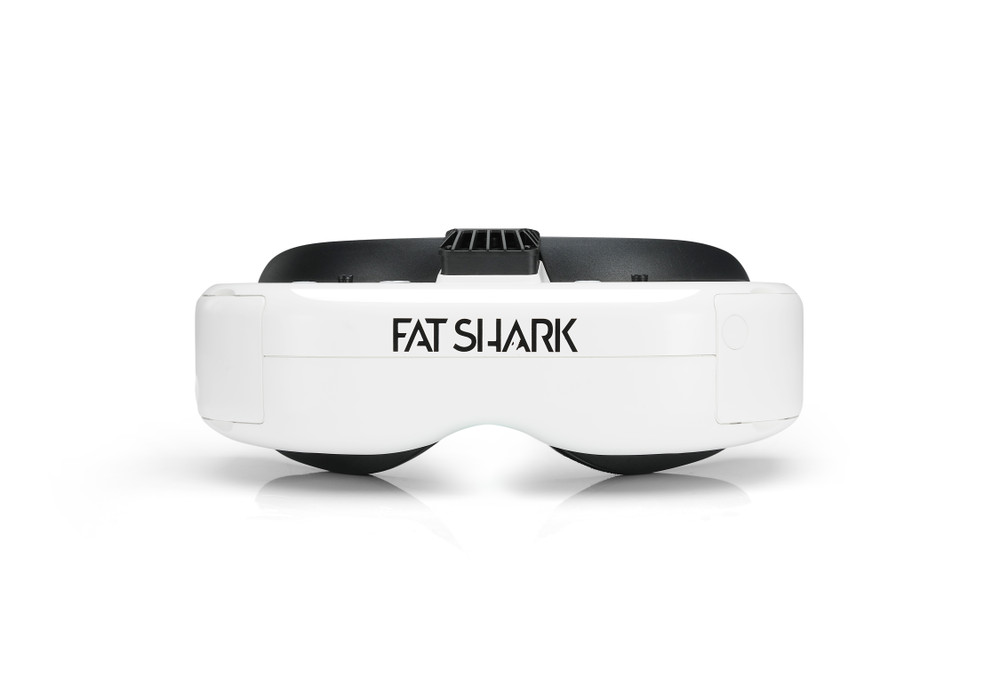

Dominator HDO2

Things just got personal.

The Dominator HDO2 headset launches as the successor to the much-loved Dominator HDO. The HDO2 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2 can be further personalizated with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot looking for the best flight experience.



Specifications:

Optics:

  • FOV (field of view): 46 degrees diagonal
  • IPD (interpupillary distance): 54 to 74 mm (adjustable)
  • Focus: +2 to -6 diopters (adjustable)

Display:

  • Two Sony 0.5” OLED displays
  • Resolution 1280 X 960
  • NTCS/PAL auto selecting
  • AV Mode 4:3
  • AV Mode 16:9
  • HDMI Mode 16:9

Audio: Stereo


User Controls:

  • Channel Selection
  • Volume Control
  • Mode Selection
  • Display Control (Brightness and Contrast)
  • DVR Control
  • Power Button / Fan Control

Electrical:

  • Power Supply: 7 – 13V input voltage (2S – 3S Supply)
  • Power Consumption: 320mA @ 7.5V input power (no RX module) 770mA @ 7.5V input power (Rapid Analog DVR: MicroSD support to 32 GB Record Rate: 6Mbps (MJPG compression, 30 fps, AVI) File playback (native recording, no codec support) Upgradeable via SD card
  • Battery: 7.4V, 1.8A 18650 Battery Case (optional)

Interface:

  • 3.5mm AV in/out port
  • Power input port
  • 3.5mm 3p earphone port
  • MicroSD
  • RF Module Bay
  • HT connector 3 pin internal connection
  • Power Button

Mechanical: Ergonomic molded headset w/ adjustable headband

Dimensions: 169.2 x 80 x 45.5 mm

Weight: 206.8 g
