Fat Shark FSV1124 Attitude V6 Drone Racing FPV Googles 1280 x 960 LCOS Panels

$349.99

Product Description

Authorized Fat Shark Dealer in USA

Attitude V6

The new Fat Shark Attitude V6 focuses on high definition with 1280 x 960 LCOS panels and adjustable diopters. In addition to the 39-degree field of view, the Attitude V6 has a selectable image ratio, an expanded display control menu, and a configurable power button. The Attitude V6 ships with analog diversity receivers and is fully compatible with the Shark Byte HD module future-proofing your FPV experience!

Specifications:

Optics:
  • FOV (field of view): 39 degrees diagonal
  • IPD (interpupillary distance): 54 to 74 mm (adjustable)
  • Focus: +2 to -6 diopters (adjustable)



Display:
  • Two citizen 0.4” LCOS displays
  • Resolution 1280 X 960
  • NTCS/PAL auto selecting
  • AV Mode 4:3
  • AV Mode 16:9
  • HDMI Mode 16:9



Audio:
  • Stereo



User Controls:
  • Channel Selection
  • Volume Control
  • Mode Selection
  • Display Control (Brightness and Contrast)
  • DVR Control
  • Power Button / Fan Control



Electrical:
  • Power Supply: 7 – 13V input voltage (2S – 3S Supply)
  • Power Consumption: 320mA @ 7.5V input power (no RX module)
  • 770mA @ 7.5V input power (Rapid



Analog DVR:
  • MicroSD support to 32 GB
  • Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
  • File playback (native recording, no codec support)
  • Upgradeable via SD card



Battery:
  • 7.4V, 1.8A 18650 Battery Case



Interface:
  • 3.5mm AV in/out port
  • Power input port
  • 3.5mm 3p earphone port
  • MicroSD
  • RF Module Bay
  • HT connector 3 pin internal connection
  • Power Button
Mechanical:
  • Ergonomic molded headset w/ adjustable headband
  • Dimensions: 169.2 x 80 x 45.5 mm
  • Weight: 199g

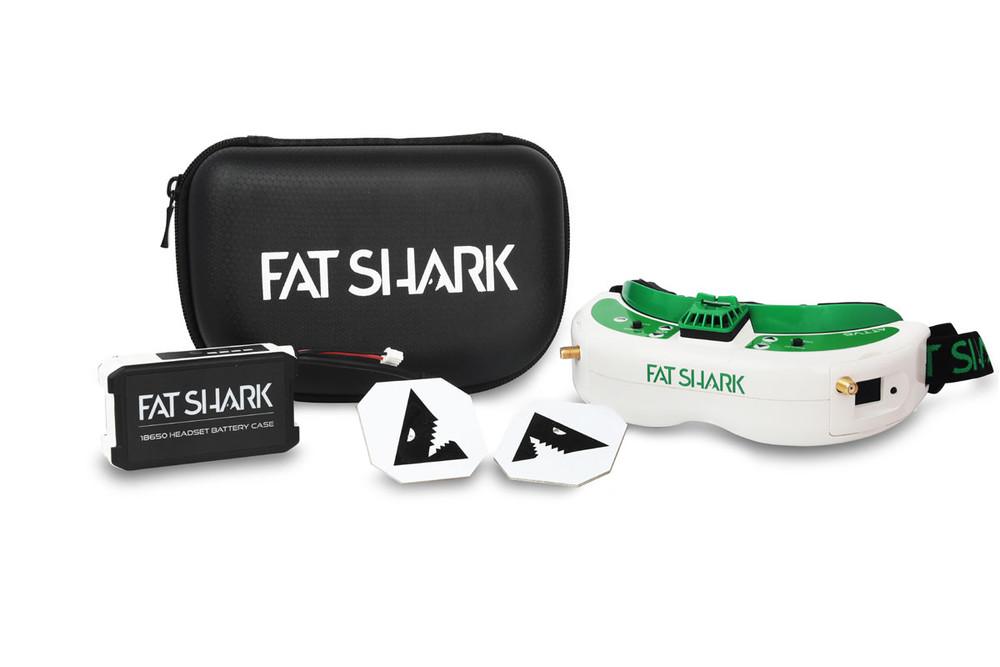

In the box: Attitude V6 headset, zipper carrying case, 18650 battery holder (*battery cells are NOT included), patch antennas x2

Other Details

MPN:
FSV1124
UPC:
840630111246
