E305 430 Lite ESC

$19.99

Product Description

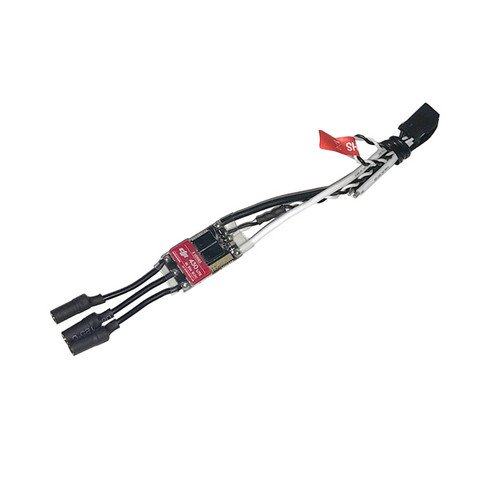

E305 430 Lite ESC

The E305 multi-rotor propulsion system utilizes square-wave drive architecture, providing a smaller, lighter package than a sine-wave drive ESC. The compact, smaller circuit board is easier and quicker to mount without compromising current output. Customized DJI 32-bit 100 MHz MCU and motor-control algorithms make your flight platform highly maneuverable and stable for challenging tasks.

Specification

ESC

Max. Allowable Voltage
17.4 V
Max. Allowable Current (Persistent)
20 A
Max. Allowable Peak Current (3 Seconds)
30 A
PWM Input Signal Level
3.3 V / 5 V Compatible
Signal Frequency
30 ~ 450 Hz
Battery
3S ~ 4S LiPo
Size
54×24×9 mm
Cabel Length
420 mm
Weight (Without Cable)
12.5 g
Weight (With Cable)
27 g
