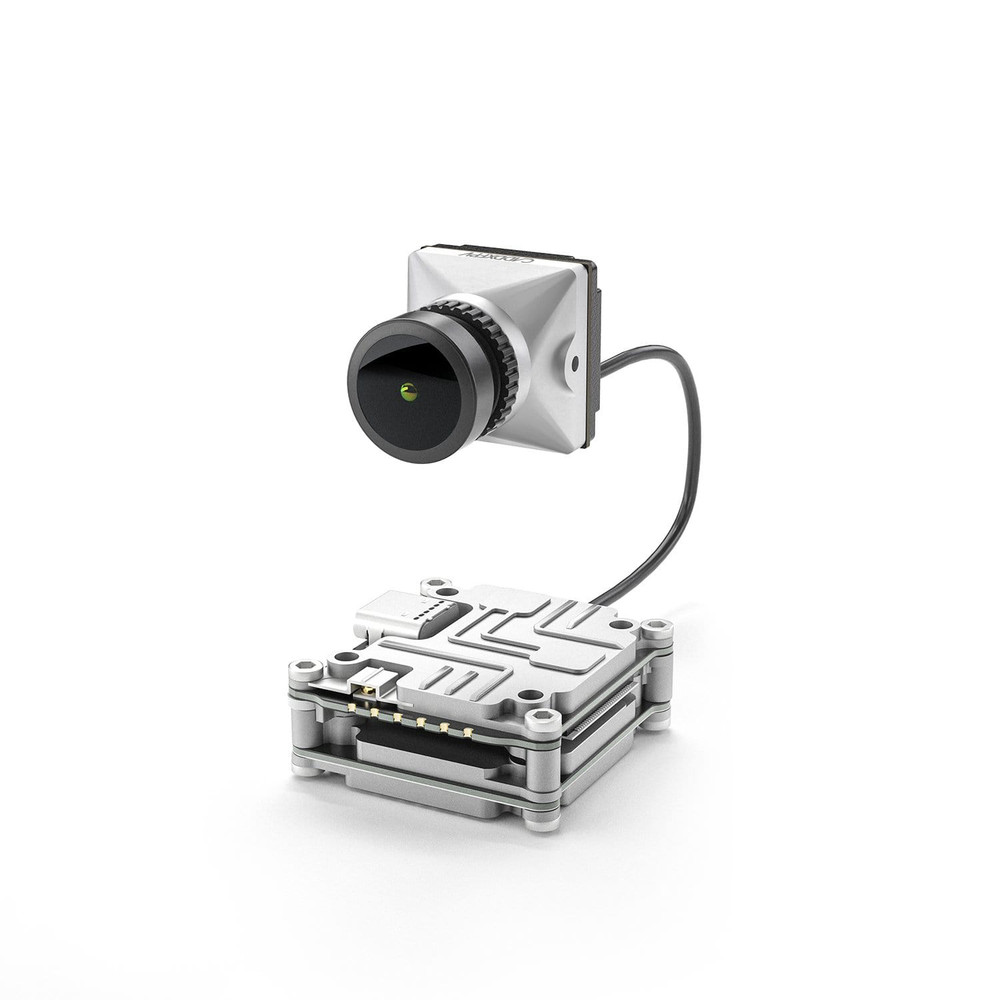

Caddx Polar Vista Kit Starlight Digital HD FPV System

Features:

• Lightweight digital image transmission combination
• Stable and clear HD video
• 720p 60fps, 32ms/4km
• 8 channels, 8 drones

Specifications:

• Polar air unit (Include camera) Weight: 28g; Antenna: 1.5g
• Dimensions: Air unit: 30x29x13mm; Camera: 24x19x19mm; Coaxial Cable: 120mm
• Operating Frequency: 5.725-5.850GHz
• Transmitter Power(EIPP): FCC/SRRC: <30dBm; CE: <14dB
• Min.Latency(end-to-end): 720p 60fps<32ms
• Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km
• I/O Interface: USB-C,IPEX,3-in-1 port
• Supported Flight Control System: F3.F3.F7
• Operating Temperature Range: 0°to 40°C（32°to 104°F）
• Input Power: 7.4-26.4V
• Power Output: 25mW/200mW/500mW/700mW

Camera Specifications:

• Sensor: 1/1.8" starlight cmos
• Min.Illuminatin: 0.00003Lux
• Lens: F/1.6 & 8 Mega
• Shutter: Rolling shutter
• ISO: 100-25600
• FOV: 162°(D);138°(H);75°(V)
• Aspect Ratio: 16:9

Compatibility: Work with DJI FPV Goggles

In the box: Polar vista kit, m2 screws, gasket rings, menu cable, 3-in-1 cable
